The treated water is stored for varied purposes viz.,
- Efficient storage & Recirculation
- Precise Control and Monitoring
- Designed quantity and quality at point of use
Efficient system design, with minimal pressure drops, right pump selection, VFD for power efficiency and high quality materials and surface finish to ensure bacteriostatic condition
System designed for consistent performance, high reliability and low maintenance
Precision & high quality instruments that are reliable, Monitoring of critical parameters with data logging with GAMP 5 and 21 CFR Part 11 compliance
System designed for in-situ hot water sanitization with precise steam control
The storage tank is designed for optimal tank turnover, with high internal surface finish. It is jacketed and insulated for high thermal efficiency. A 360o spray ball ensures uniform wetting of the tank.

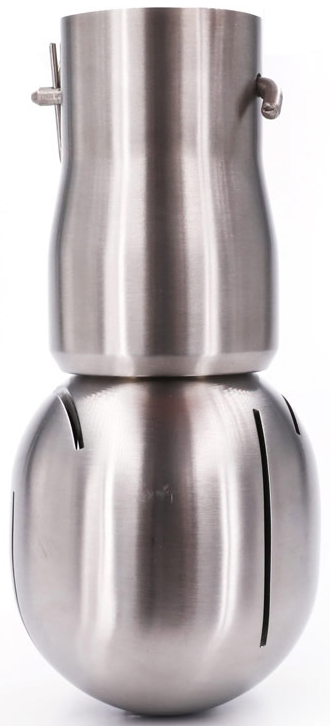

Compact, Self-draining, Spray ball designed for 3600 coverage is designed for flush cleaning of the storage tanks. They are designed for powerful flush cleaning at low pressure.

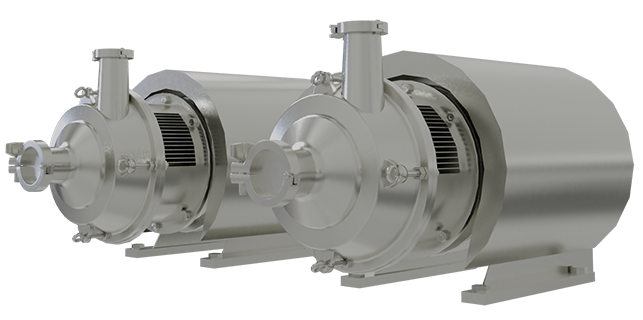

Our twin (1 working, 1 Standby) sanitary, SS316L pumps are designed for high efficiency, lower operational cost. They are also designed to optimize bacterial control, prevent rouging, reduce energy consumption, minimize maintenance and sanitation.

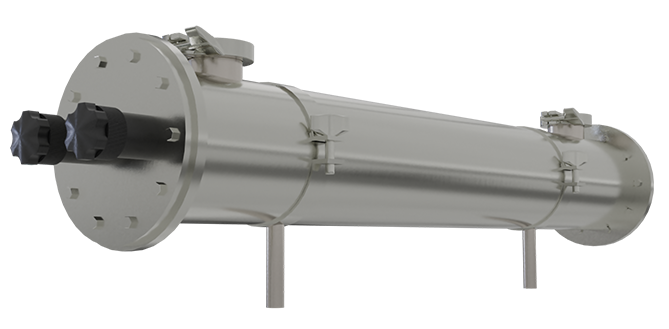

Our UV systems are designed for to meet the stringent standards of the pharmaceutical and bio-pharmaceutical industry. Along with the UV lamps, the system also contains dosage monitoring, intensity and the lamp life as well. The system features all sanitary design construction with all contact parts in SS316L with electropolished inner finish.

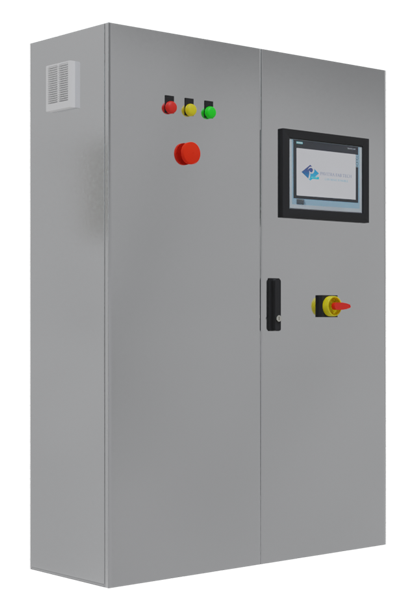

We offer Integrated PLC based control panels with intuitive touch screen HMI. With option to connect with DCS / SCADA, our panels are designed to comply with CFR 21, Part 11 and GAMP-5.

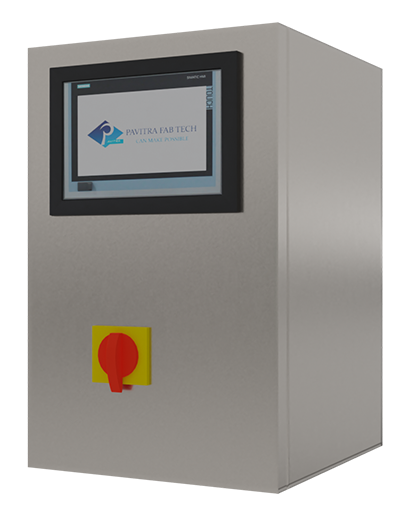

Our very compact Distribution, Disinfection and monitoring skid is designed to be compact, easy of access and contains all critical monitoring instruments and controls for monitoring of flow, pressure, temperature, conductivity, TOC, UV intensity etc. It is also pre-wired and pretested for plug and play.
