Reliable and robust Pre-treatment ensures the fluctuating load is not transferred to the purified water system. Based on the raw water quality, our pre-treatment plants are designed to handle decent range of fluctuation of raw water.
The pre-treatment is also designed with all safety features to ensure high safety of the systems in downstream.
System is designed to handle wide range of raw water quality fluctuations
Safety features to ensure the life and performance of the sensitive membranes in the downstream
The system is automated to eliminate human errors by incorporating auto multiport valve, auto backwashing systems etc.
We use only high quality products like Norit / Inge / Dow UF membranes, Pentair vessels and multiport valves, Grundfos pumps etc.

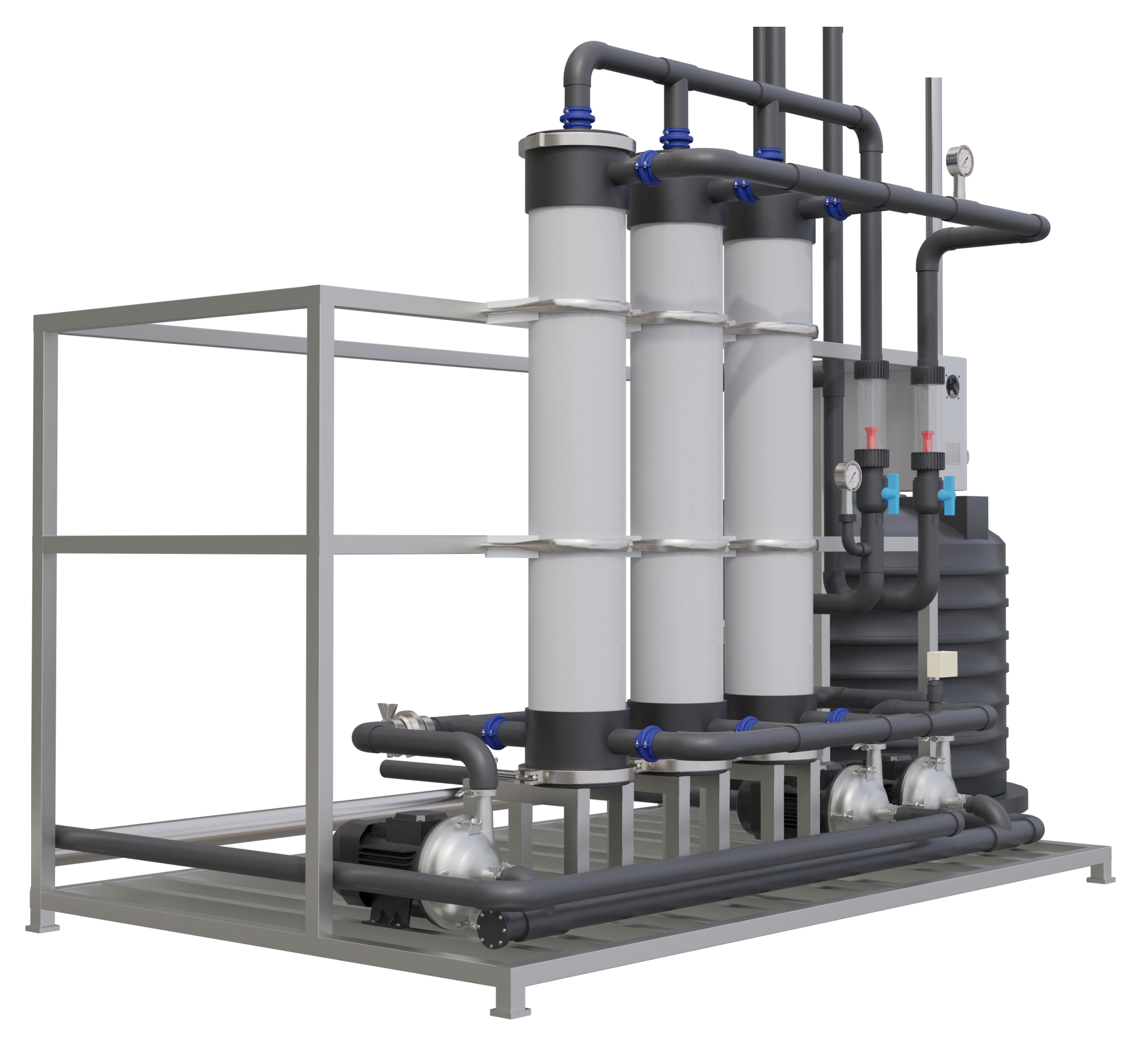

Almost every RO membrane in the downstream demands the SDI to be less than 5 and hence UF ensures this consistently. Our UF is designed to be fully automated with backwash, CIP, rinsing cycles being triggered automatically either by time or by differential pressure. We also use UF membranes from manufacturers of repute like INGE, NORIT, DOW etc.

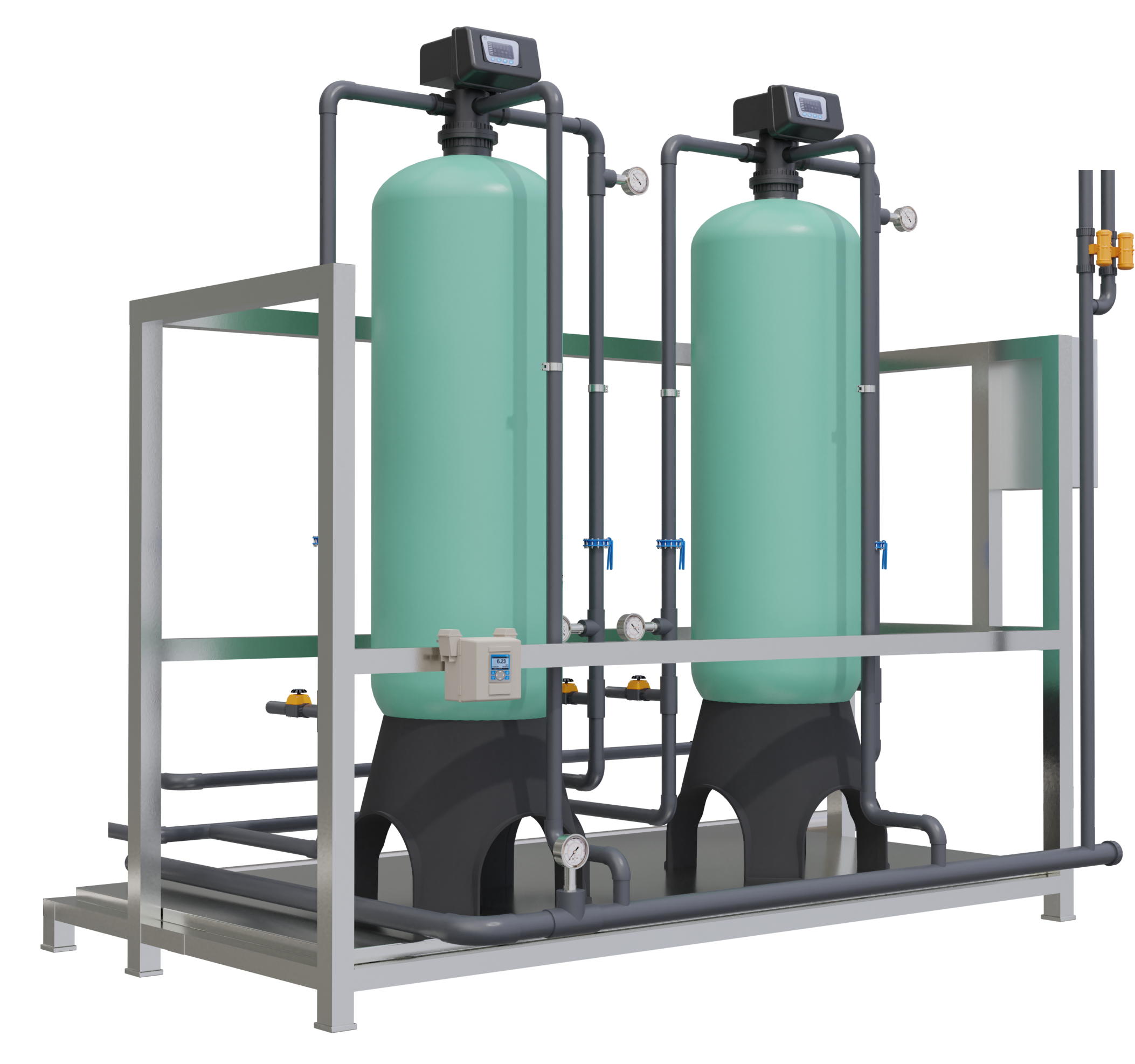

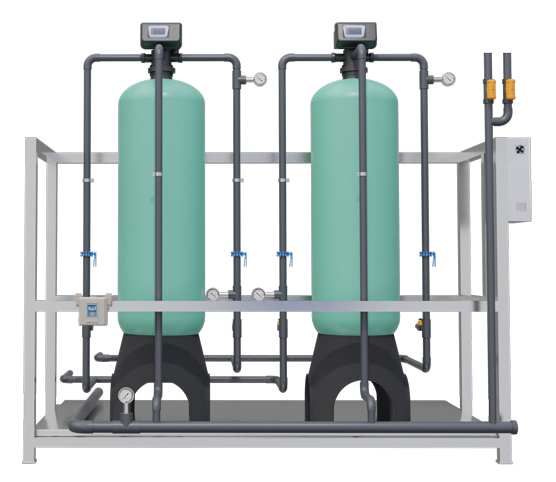

The duplex softener removes dissolved calcium and magnesium from the water making it soft water. It comprises two resin columns to reduce downtime. When the first column reaches exhaustion the second column treats water while the first column undergoes regeneration.

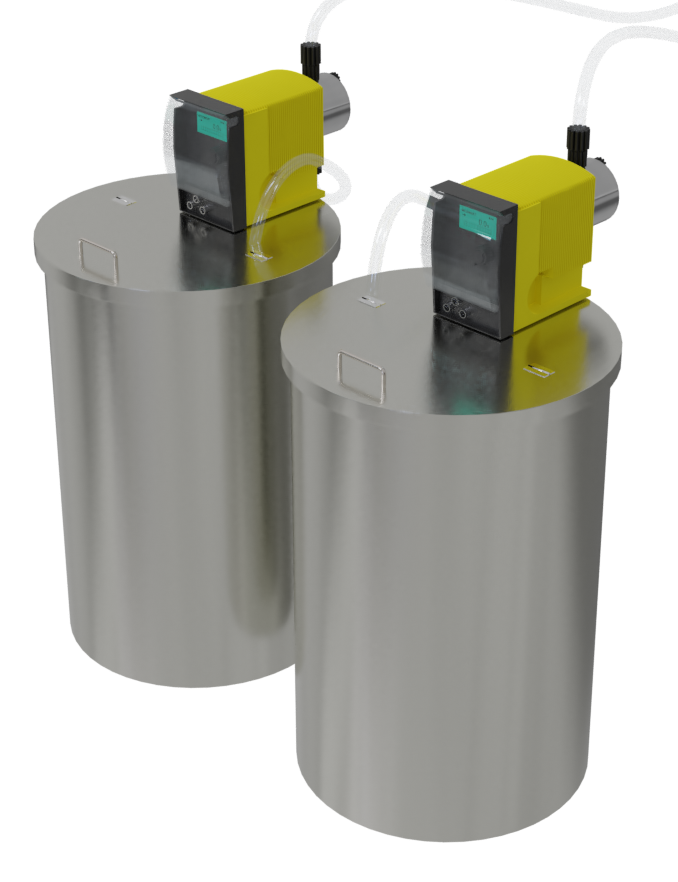

Our automated dosing system maintain desired pH level in the water storage tank. It helps protect corrosion and precipitation
Multigrade sand filter is used at the initial stage to treat feed water. It removes suspended particles using a media mix.
